VW4 Series Wall Mount Cabinet

Options:

These High Density Swing Out Wall Mount Cabinets are designed for network, security, and AV installations that demand strength, security, and easy access. Built with a fully welded cold rolled steel frame and heavy-duty 12-gauge mounting rails, these cabinets support up to 350 lbs. of equipment. The 90-degree swing-out design, removable lockable doors and side panels, and multiple cable entry points simplify installation and maintenance. Grounded doors, secure locking panels, and UL 2416 compliance help protect critical equipment, while multiple size options provide flexibility for space-constrained environments. Ships fully assembled for quick deployment.

★ Swing-Out Rear Access

★For Network, Security or A/V Installations

★ Built for Heavy-Duty Applications

★ 350 lb. Load Capacity (32" Deep Models)

Product Specifications

Product Type High Density Swing Out Wall Mount Cabinet

Frame Material Heavy Gauge Cold Rolled Steel

Finish Black Powder Coat

Dimensions (H x W x D) (Height Varies by Item #) × 23.69" × 23.50"

Rack Unit Quantity 12U, 18U, or 25U

Front Door Removable, Reversible & Lockable Steel Frame With Full-Panel Acrylic Window; Opens 180° (Mesh Door Also Available)

Rear Door Swings Out From Wall 90°, Heavy-Duty Hinges, 8.5" x 15" Knockout Panel, Wall Mounting Keyholes Spaced 16" Apart, Multiple Lace Points

Side Panels Full Height, Removable & Lockable

Top Panel 5.25" x 17" Removable Panel For Optional Fans, *6) Cable Knockout Entry Holes Located At Back: (4) 3" and (2) 1" Knock-Outs

Bottom Panel (6) Knock Out Cable Entry Holes Located At Back: (4) 3" and (2) 1" Knock-Outs

Equipment Support 12 Gauge Mounting Rails: (1) Pair 24” Depth, (2) Pair 32” Depth, 1.75” RU Spacing, Marked & Numbered On Rails; 19” W, EIA-310-D Universal Vertical Hole Spacing; 12-24 Threaded Holes

Grounding 14 AWG Ground Wires Connect Doors and Side Panels To Cabinet Frame

Static Load Capacity (24" Deep Models) 250 lbs.

Static Load Capacity (32" Deep Models) 350 lbs.

Included Accessories (48) 12-24 Mounting Screws & Washers, (4) Grounding Kits, (1) Paper Mounting Template, (2) Keys

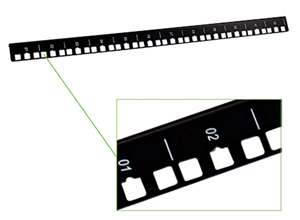

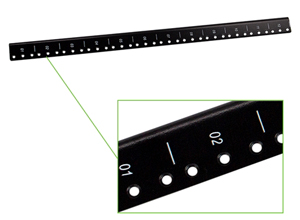

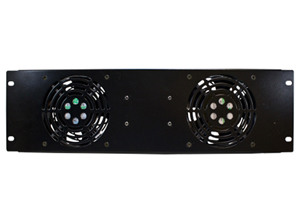

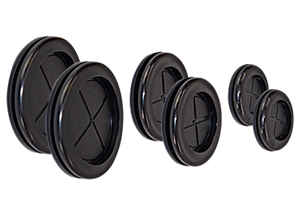

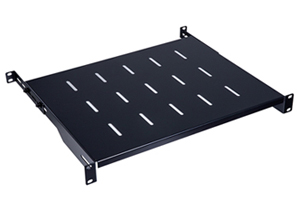

Optional Accessories Fans, Shelves, Rubber Grommet Kit, Cage Hole Rails, Tapped Rails, Doors & More

Compliance & Standards RoHS, UL Listed 2416, NWIN, File #504749, ANSI/EIA RS-310D, IEC60297-2 DIN41194; Part 1, DIN41494; Part 7

For complete specifications, dimensions, and accessory compatibility, download the product specification sheet.
